The System
Three Stages, One Warranty Path
Every CorroShield stage is formulated and tested against the others: primer-to-membrane adhesion, membrane-to-topcoat recoat windows, and thermal movement as a combined film. When a stack is applied to spec, there is no finger-pointing between vendors — one manufacturer stands behind the whole cross-section. The table below summarizes the stack; full TDS sheets for each stage are available on request.
System Summary
| Property | Value |
|---|---|
| CS-Prime: type | Moisture-tolerant penetrating primer/sealer |
| CS-Prime: coverage | 250–350 sq ft/gal on rusted profile |
| CS-Prime: recoat window | 30 minutes to 24 hours |
| CS-Membrane: type | Pure polyurea elastomer, 100% solids, 0 VOC |
| CS-Membrane: tensile / elongation | 2,800 PSI / 350%+ (ASTM D412) |
| CS-Membrane: build | 40–60 mils nominal, single mobilization |
| CS-Membrane: tack-free | 3–6 minutes @ 70°F |
| CS-Topcoat: type | Aliphatic polyurethane/polyurea hybrid, UV-stable |
| CS-Topcoat: gloss retention | > 85% at 2,000 hrs QUV (ASTM G154) |
| System salt-spray | No underfilm corrosion, 1,000+ hrs (ASTM B117) |
| System service temp | -40°F to +250°F |

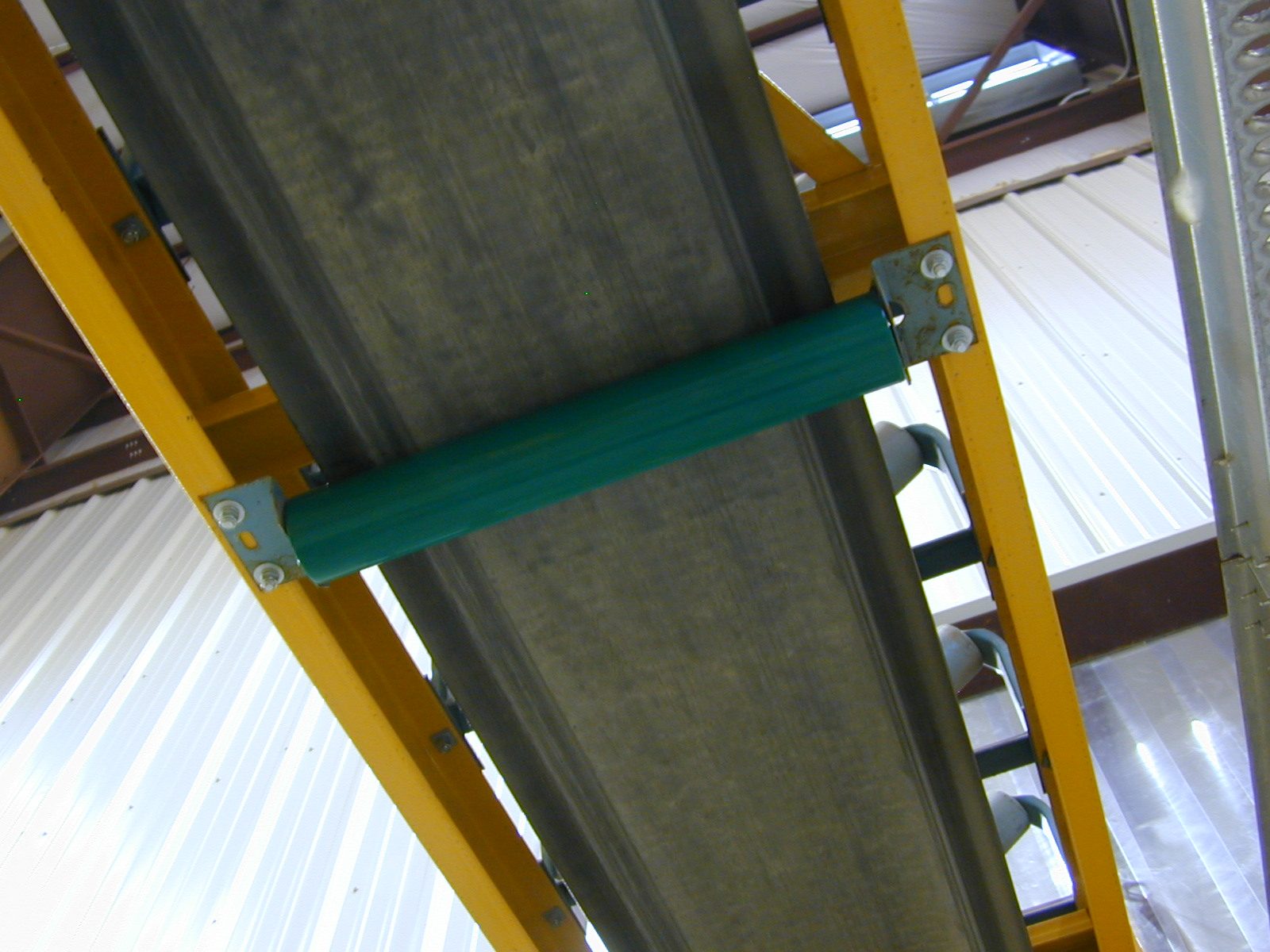

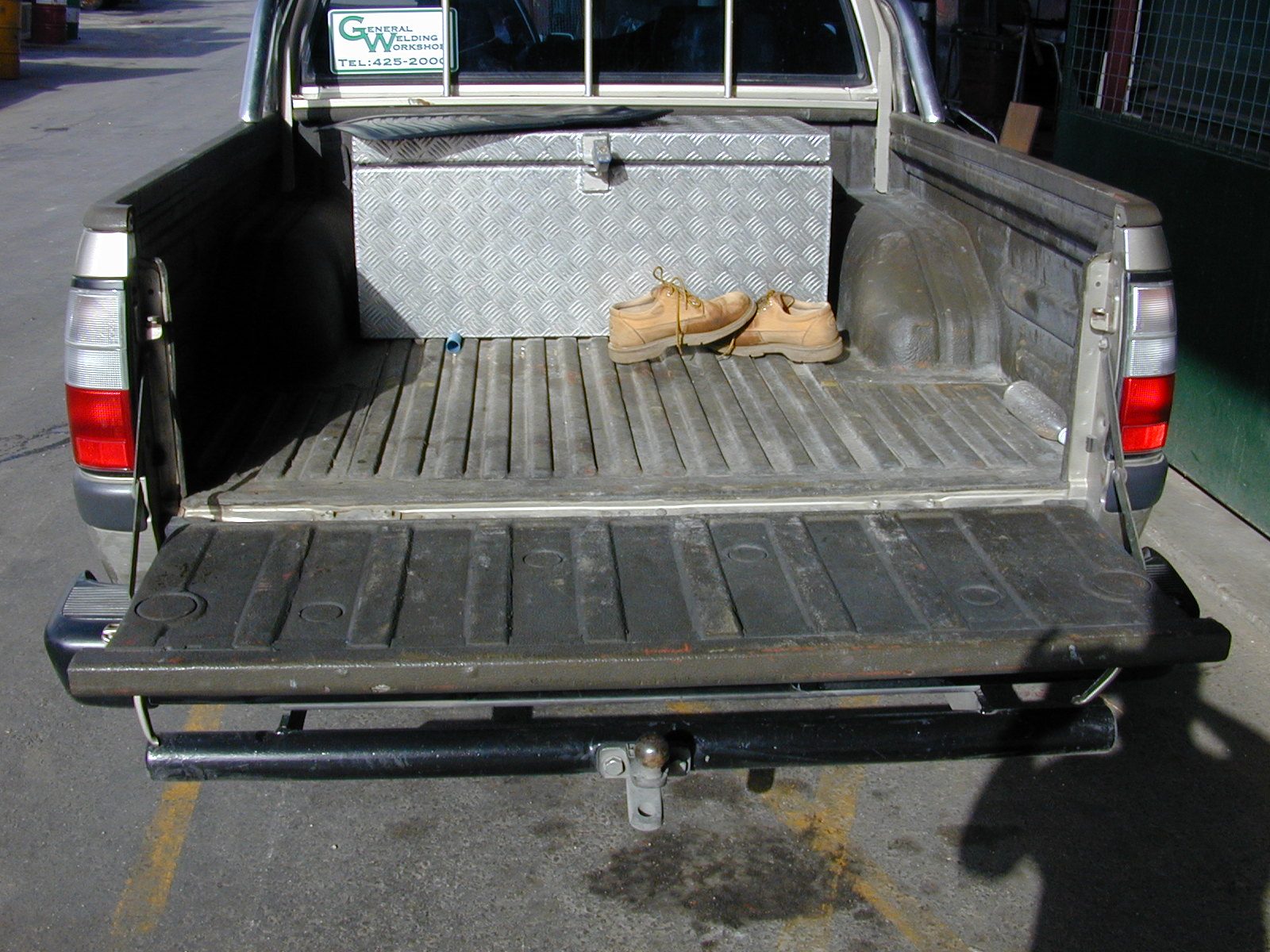

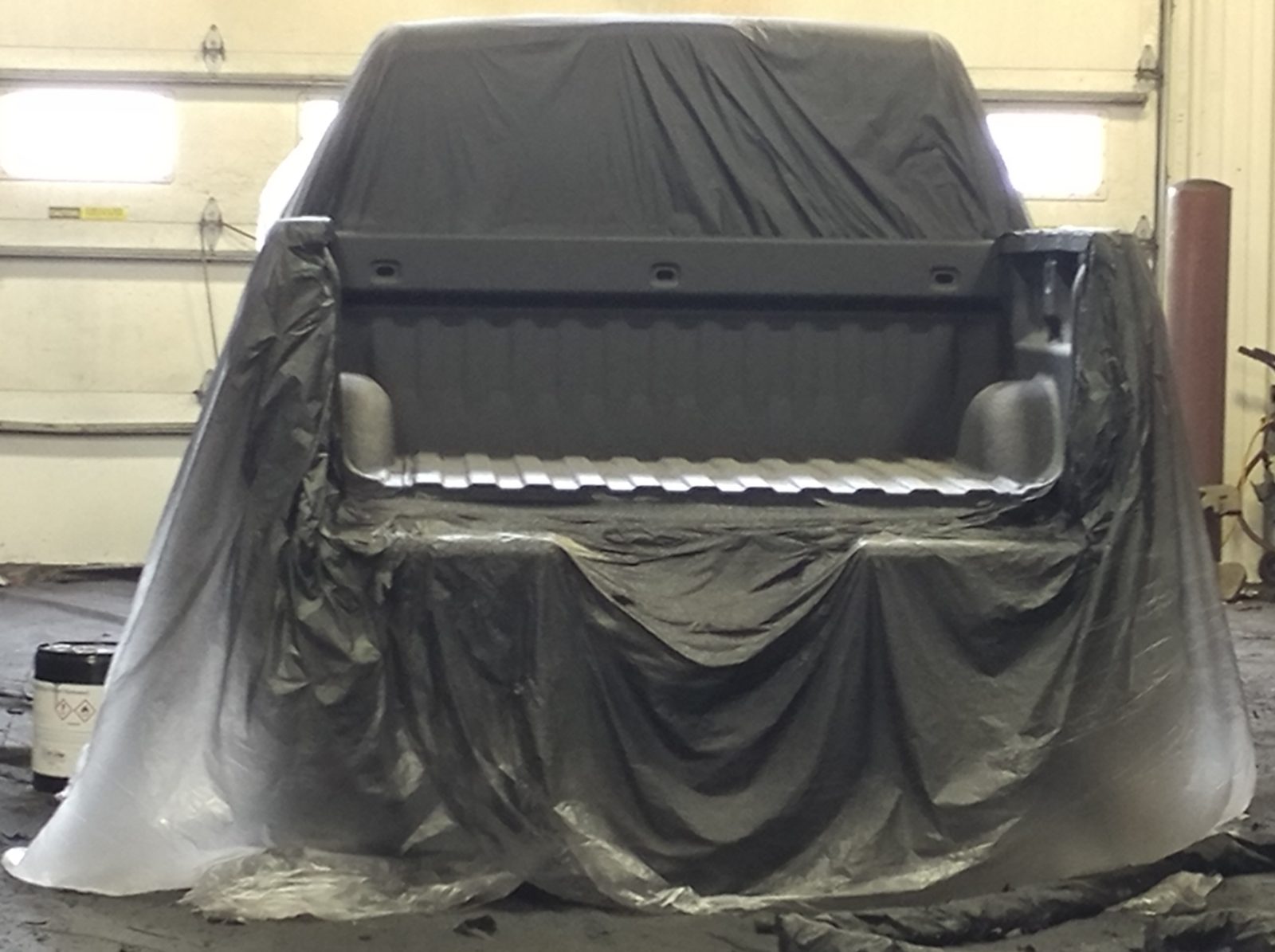

The Stack at Work
Get All Three TDS Sheets
Stage-by-stage technical data, kit quantities and reseller spec cards in one packet.
